- VLT
- 5%
- TSER
- 71%
- IRR
- 96%
- IRER
- 67%
- IR BAND
- 780–2500 nm
- UV REJECTION
- 99.5%
- VISIBLE REFLECTION EXTERIOR
- 8%
- VISIBLE REFLECTION INTERIOR
- 6%
NANO-CERAMIC ENHANCED WINDOW FILM
RAYNARY 5+
BUILT ON FIVE.ENGINEERED FOR MORE.
RAYNARY 5+ is a nano-ceramic enhanced automotive window film series engineered to balance heat management, UV protection, glare reduction and everyday visual comfort. Built around a five-layer material architecture, it delivers dependable performance across a versatile range of shades.
PRODUCT / MATERIAL SYSTEM
RAYNARY 5+
RAYNARY 5+ starts with a five-layer film architecture engineered as a complete material system. Nano-ceramic performance works within that structure to support solar heat management, UV protection and visual comfort while maintaining a balanced everyday driving experience.
The “+” represents what comes beyond the foundation — a focus on better performance, greater comfort and a more considered experience across every shade in the series.
- MATERIAL SYSTEM
- Nano-Ceramic Enhanced Multi-Layer Architecture
- AVAILABLE VLT
- 5% / 20% / 35% / 50% / 70%
- PRIMARY FOCUS
- Balanced Solar & Visual Performance
- WARRANTY
- Conditional Lifetime Limited Product Warranty*
Abstract material-system visualization. Public layer names and chemistry are intentionally not inferred.
CORE PERFORMANCE
BALANCE IN EVERY LAYER.
Five performance priorities brought together for solar comfort, protection, privacy and everyday usability.
- 01
Heat Management
Helps reduce solar heat entering the cabin, supporting a cooler and more comfortable interior during everyday driving.
- 02
UV Protection
Provides high UV rejection to help protect occupants and interior surfaces from prolonged ultraviolet exposure.
- 03
Glare Control
Reduces harsh visible light and glare to support a more comfortable view in changing driving conditions.
- 04
Privacy by Shade
A full range of visible-light transmission options allows drivers to choose the level of privacy and appearance that suits their vehicle.
- 05
Everyday Clarity
Designed to maintain a clean, comfortable view through the glass while supporting the visual character of the vehicle.
CHOOSE YOUR SHADE
FIVE LEVELS.
ONE CONSIDERED SYSTEM.
Compare the approximate visual direction of every available model before discussing legal limits and vehicle suitability with an authorized installer.

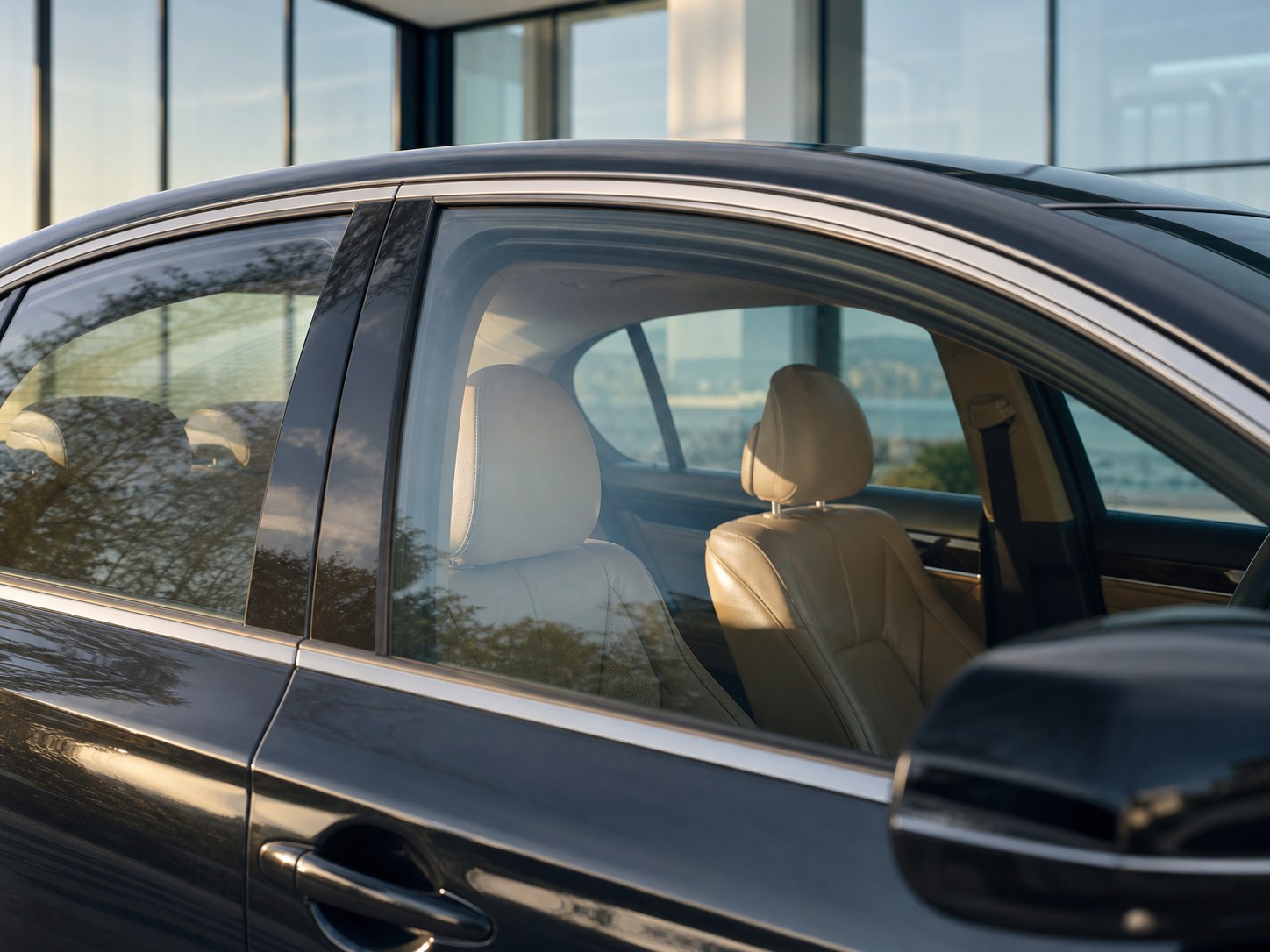

RAYNARY 5+53535% VLT
Balanced shade and visibility
Screen appearance is an approximate visual comparison, not a scientific optical simulation. Tint laws and permitted VLT levels vary by jurisdiction. Consult an authorized installer for local requirements.
TECHNICAL PERFORMANCE
THE NUMBERS
BEHIND THE FILM.
Published product data presented by model. Use the responsive model cards on smaller screens.
| MODEL | VLT | TSER | IRR | IRER | IR BAND | UV REJECTION | VISIBLE REFLECTION EXTERIOR | VISIBLE REFLECTION INTERIOR |
|---|---|---|---|---|---|---|---|---|
| RAYNARY 505 | 5% | 71% | 96% | 67% | 780–2500 nm | 99.5% | 8% | 6% |
| RAYNARY 520 | 20% | 63% | 96% | 67% | 780–2500 nm | 99.5% | 8% | 6% |
| RAYNARY 535 | 35% | 60% | 96% | 67% | 780–2500 nm | 99.5% | 8% | 6% |
| RAYNARY 550 | 50% | 49% | 80% | 56% | 780–2500 nm | 99% | 8% | 7% |
| RAYNARY 570 | 70% | 47% | 90% | 63% | 780–2500 nm | 99% | 8% | 6% |
- VLT
- 20%
- TSER
- 63%
- IRR
- 96%
- IRER
- 67%
- IR BAND
- 780–2500 nm
- UV REJECTION
- 99.5%
- VISIBLE REFLECTION EXTERIOR
- 8%
- VISIBLE REFLECTION INTERIOR
- 6%
- VLT
- 35%
- TSER
- 60%
- IRR
- 96%
- IRER
- 67%
- IR BAND
- 780–2500 nm
- UV REJECTION
- 99.5%
- VISIBLE REFLECTION EXTERIOR
- 8%
- VISIBLE REFLECTION INTERIOR
- 6%
- VLT
- 50%
- TSER
- 49%
- IRR
- 80%
- IRER
- 56%
- IR BAND
- 780–2500 nm
- UV REJECTION
- 99%
- VISIBLE REFLECTION EXTERIOR
- 8%
- VISIBLE REFLECTION INTERIOR
- 7%
- VLT
- 70%
- TSER
- 47%
- IRR
- 90%
- IRER
- 63%
- IR BAND
- 780–2500 nm
- UV REJECTION
- 99%
- VISIBLE REFLECTION EXTERIOR
- 8%
- VISIBLE REFLECTION INTERIOR
- 6%
5+BEYOND THE FOUNDATION
THE MEANING OF 5+
HARMONY THROUGH COMBINATION.
Across ancient traditions, five has often represented balance — different elements brought together into a complete whole.
RAYNARY 5+ translates that idea into a modern material language. Its five-layer foundation brings multiple functions together within one considered film system, balancing solar performance, visual comfort and everyday usability.
But five is only the foundation. The “+” represents the pursuit of more — better performance, greater comfort and a better experience behind the glass.
